Regular Products – Manufactured range from UAE factory

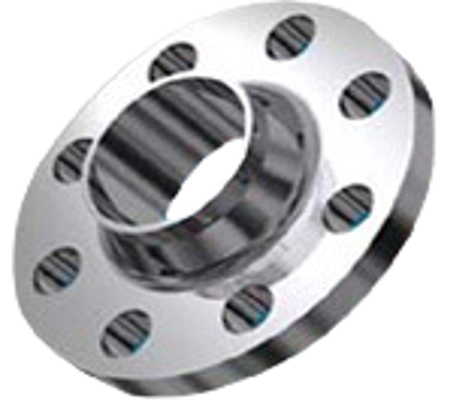

- FORGED FLANGES

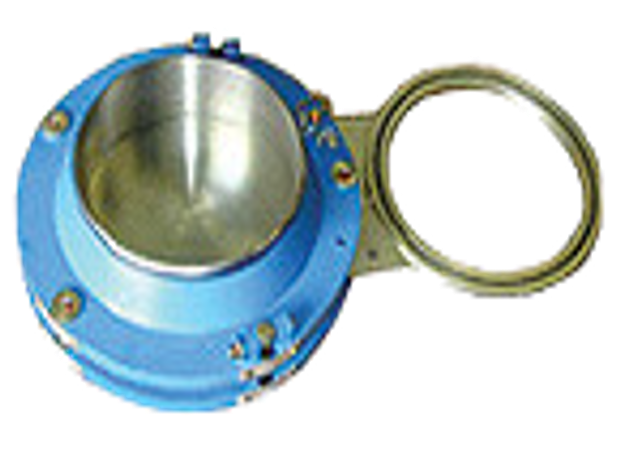

- Spectacle Blind & Fig-8 Flanges Spacer & Paddle
- Christmas tree Equipments: Well Heads, Casing Heads, Tubing Heads, API Flanges, Blocks & Connectors, Ring Joint Gaskets
- Non-standard Forgings: Self Reinforced Nozzles, Rings, Wheels, Tyre Tube Sheets

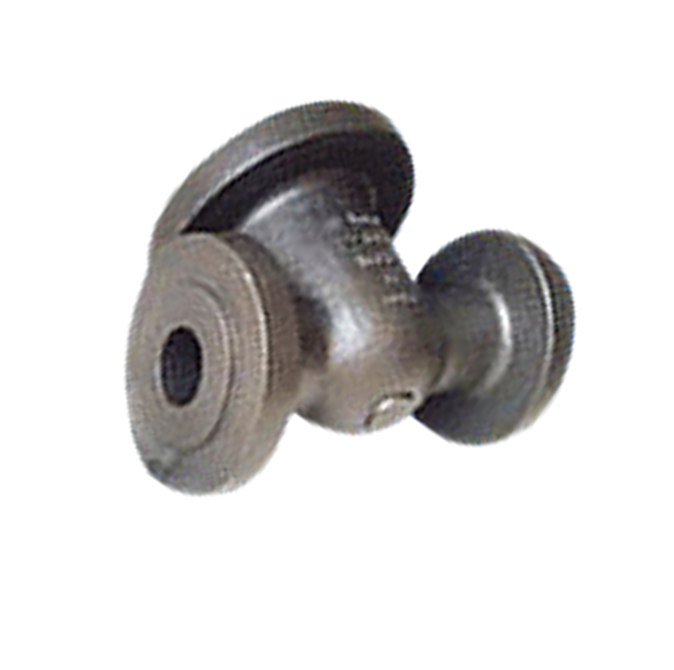

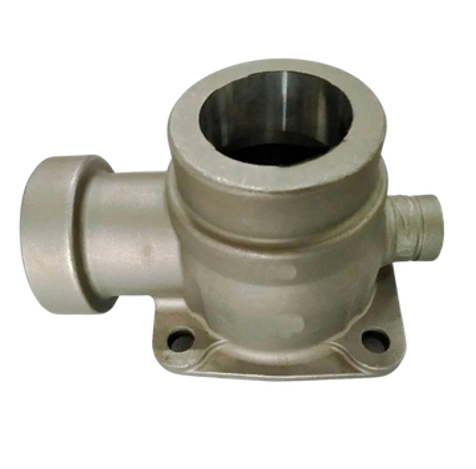

- Casted, Forged Valve Body and Bonnet

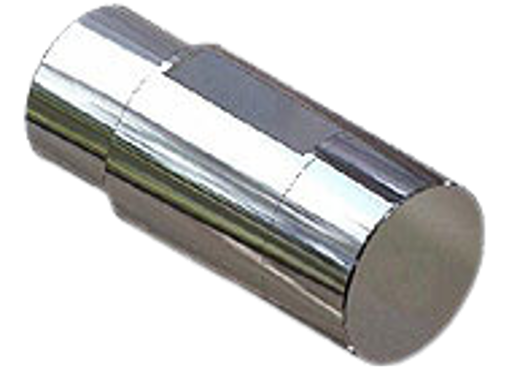

- Forged Rounds / Shafts

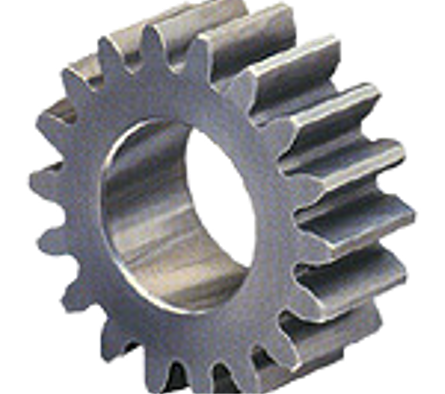

- Windmill Gearbox Forgings: Forged Gear Blanks and Shafts
- Steel Castings
| Item | Size Range | Pressure Rating |
| Slip On, Weld Neck, Blind, Socket Weld, Screwed, Lap Joint, Reducing Type. | 1/2" To 60" | 150, 300, 600, 900, 1500, 2500 lbs |
| Orifice Flanges Complete with Taping, without JACK SCREWS. | 1/2" To 48" | 150, 300, 600, 900, 1500, 2500 lbs |
Dimension Standards :
ANSI B 16.5, B 16.1, B 16.47 Series 'A' and 'B', MSS SP-44, JIS SK, 10K, 16K, DIN, BS 4504 or any other as per customer's requirements.
Material Grades :
ASTM A-105, ASTM A-350 LF-2, A182 F-304/F-304H/F-304L/ F-316L/ F-321/ F-347/F-316Ti, A 181 F-1/F-5/F-11/F-22, ASTM A182 F-5/F-9/F-11/F-22, AISI 304/410/420/3042 or any other IS, DIN, JIS or international standards in Carbon/ Alloy/ Stainless Steel.
